# 05鉴定duplicate gene

### blastp比对

首先使用整个基因组的蛋白序列进行比对

* `-evalue 1e-10` 筛选指标
* `-outfmt 6`下一步 MCScanX  要使用的格式
* `-num_threads 20`线程数目

**如果存在多个转录本的情况下默认用第一个转录本代表这个基因**

提取第一个转录本代表这个基因的氨基酸序列

```bash
awk 'NR==1&&$1~/^>/{print $0}NR>=2&&$1~/^>/{print "\n"$0}$1~/^[^>]/{printf $0}' Ghirsutum_gene_peptide.fasta|grep -E "Ghir_A[^\.]*\.1$" -A 1|sed -e 's/-//g' -e 's/\.1//g'
```

```bash
## 建库
makeblastdb -dbtype 'prot' -parse_seqids  -in Dt_peptide.fa  -out blastpDB/Dt
# 比对
blastp -query At_peptide.fa  -db At  -evalue 1e-10   -num_threads 20 -outfmt 6 -out At_vs_At.blast
## 提交LSF任务
bsub -J Dt_Dt -q "normal" -n 20 -R span[hosts=1] -e Dt_Dt.err -o Dt_Dt.out "blastp -query ~/work/Alternative/data/Ghirsutum_genome_HAU_v1.0/Dt_peptide.fa  -db ~/work/Alternative/data/Ghirsutum_genome_HAU_v1.0/blastpDB/Dt -evalue 1e-10   -num_threads 20 -outfmt 6 -out  Dt_vs_Dt.blast"
```

### 安装MCScanX

报错

```bash
error: ‘getopt’ was not declared in this scope
dissect_multiple_alignment.cc中添加头文件
#include <getopt.h>
‘chdir’ was not declared in this scope
添加头文件 #include <unistd.h>
```

```
$ unzip MCscanX.zip
$ cd MCScanX
$ make
```

使用说明

<http://chibba.pgml.uga.edu/mcscan2/documentation/manual.pdf>

#### 制作对应的gff文件

```bash
awk '$1~/Ghir_A/&&$3~/gene/{print $0}' Ghirsutum_genome_HAU_v1.0/Ghirsutum_gene_model.gff3|awk -F ";" '{print $1}'|awk '{print $1"\t"substr($9,4)"\t"$4"\t"$5}'
```

### 鉴定共线性区域

* `-g` gap penalty

```bash
~/software/MCScanX/MCScanX -g -3 A2_A2/A2_vs_A2
```

#### 下游的画点图程序

```bash
#运行dot_plotter图只能在软件的downstream那个文夹内进行
java dot_plotter -g gff_file -s collinearity_file -c control_file -o output_PNG_file
```

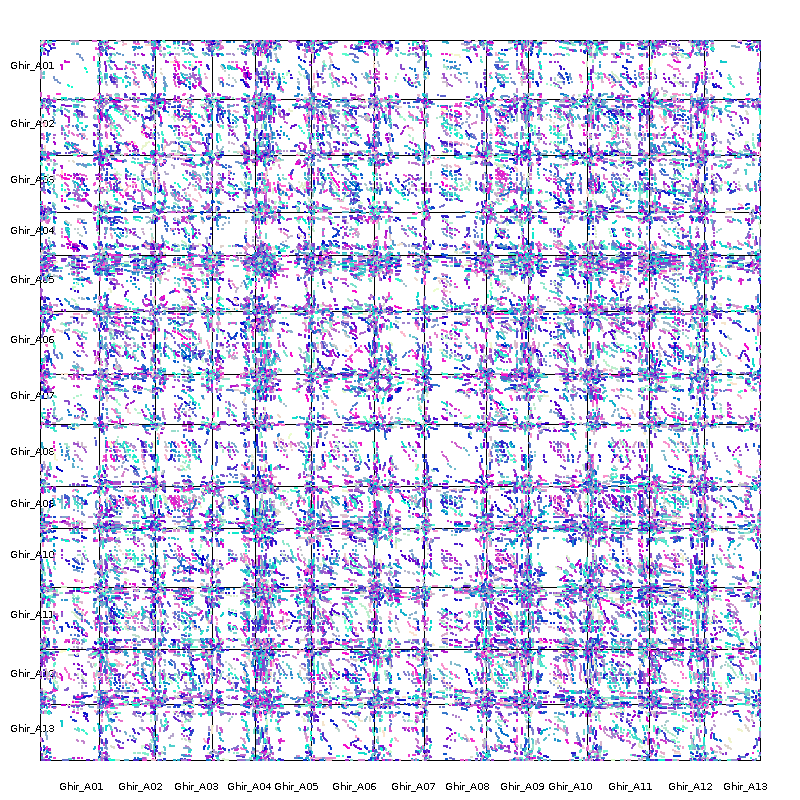

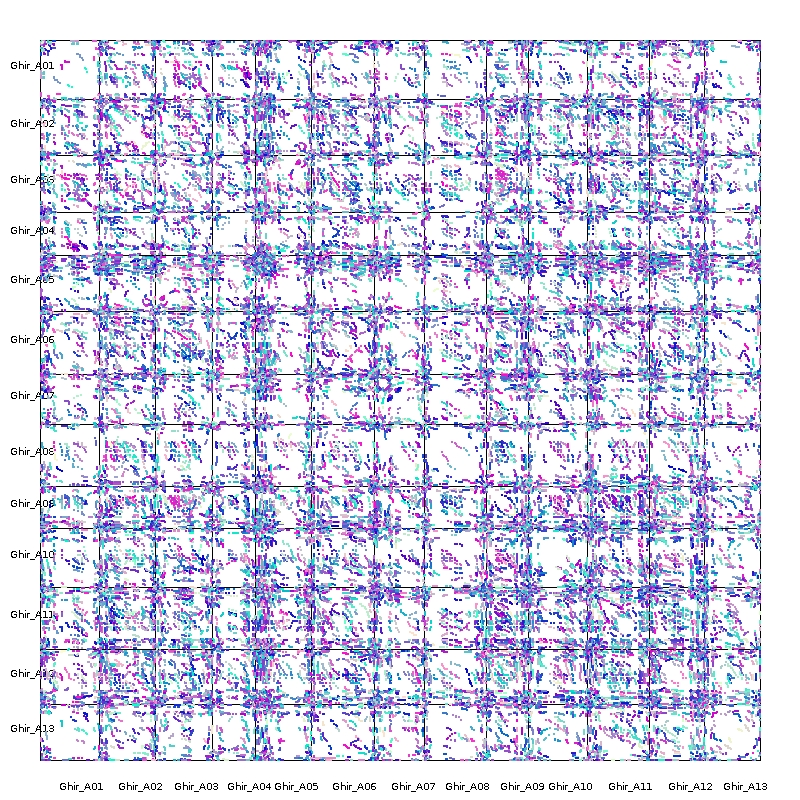

![点图](https://s2.ax1x.com/2020/03/08/3zUSmR.png)

#### 对duplicate gene进行分类

在输出文件中`*.gene_type`概括了gff中所有基因的duplicate类型

* `singleton`没有基因与它重复 0
* `proximal`  in nearby chromosomal region but not adjacent  2
* `tandem` (consecutive repeat) 串联重复 3
* `whole genome /segmental` (i.e. collinear genes in collinear blocks) 全基因组重复 4
* `dispersed` (other modes than segmental, tandem and proximal)  1

```bash
 ./duplicate_gene_classifier dir/xyz
```

## 鉴定homologous gene

### 1.运行All-vs-All-blastp

* 使用基因的第一个转录本的氨基酸序列进行blastp
* 在不同基因组之间进行blastp时，先将两个基因组对应的fasta文件合并为单个fasta文件，使用合并后的fasta文件分别做query和database

```bash
bsub -J "D5_vs_Dt" -q "smp" -n 20 -R span[hosts=1] -e %J.err -o %J.out "blastp -query ${DBDir}/D5_vs_Dt_pep.fasta -db ${DBDir}/D5_vs_Dt -evalue 1e-10 -num_threads 20 -outfmt 6 -out D5_vs_Dt.blast"
```

### 2.运行MCScanx

* `-g  -3`空位罚分-3
* `-s 5` 共线性区域最小基因对数目

```bash
~/software/MCScanX/MCScanX -g -3 -s 5 A2_A2/A2_vs_A2
```

### 3.筛选同源基因对

当有一基因与多个基因同源的时候，优先选择block更大的组合;所以对共线性文件进行格式上的处理

```bash
awk '$0~/Alignment/{split($0,a," ");b=substr(a[6],3)}$1~/^[^#]/{print $0"\t"b}'  A2_vs_At.collinearity
```

输出格式如下

* 第一列为block ID
* 第二列为block里对应的gene id
* 最后一列为block内含有的基因对的数目

```bash
  0-  0:    evm.model.Ga01G1089    evm.model.Ga02G0007     2e-134    15
  0-  1:    evm.model.Ga01G1104    evm.model.Ga02G0010          0    15
  0-  2:    evm.model.Ga01G1106    evm.model.Ga02G0012          0    15
```

最终一行命令解决

* 先提取每个block的大小
* 整理格式
* 按照基因名、block大小进行逆序排序
* uniq忽略前3列进行去重
* 两列基因都需要进行去重

```bash
awk '$0~/Alignment/{split($0,a," ");b=substr(a[6],3)}$1~/^[^#]/{print $0"\t"b}'  A2_vs_D5.collinearity |awk -F "\t" '$2~/evm/&&$3~/Gor/{split($1,a,"-");print a[1]"\t"$2"\t"$3"\t"$5}$2~/Gor/&&$3~/evm/{split($1,a,"-");print a[1]"\t"$3"\t"$2"\t"$5}'|sort -t $'\t' -k2,2 -k4,4nr|awk -F "\t" '{print $1,$3,$4,$2}' OFS="\t"|uniq -f3|awk -F "\t" '{print $1,$3,$4,$2}' OFS="\t"|sort -k4,4 -k2,2nr -t $'\t'|uniq -f3|awk '{print "Aligment_"$1"\tBlockCount_"$2"\t"$3"\t"$4}'|wc -l
```

### 4.筛选四个基因组都同源的基因

* A2\_vs\_At\_vs\_D5

  根据A2与At的同源关系找到对应的与A2同源的D5
* A2\_vs\_D5\_vs\_Dt

  根据D5与Dt的同源关系找到对应的与D5同源的A2
* 把两个文件A2\_vs\_At\_vs\_D5、A2\_vs\_D5\_vs\_Dt 中共有的基因对找到
* 根据共有的A2 vs D5 基因对找到对应于四倍体的At、Dt
* 将找到的At、Dt基因对与A2\_vs\_D进行比较，过滤一遍

使用python脚本提取四组同源基因

```bash
python ~/scripte/Alternative/module/homolog/identifyFourHomolog.py -A2D5 A2_vs_D5_collinearity.txt  -AtDt At_vs_Dt_collinerity.txt  -A2At A2_vs_At_collinearity.txt  -D5Dt D5_vs_Dt_collinearity.txt -o A2_D5_At_Dt_collinearity.txt
```


---
