02数据处理
统计各个时期的样品数目
0DPA 372份,过滤后370个样本
4DPA 362份,过滤后362个样本
8DPA 373份,过滤后372个样本
12DPA 372份,过滤后371个样本
16DPA 371份,过滤后371份样本
20DPA 370份,过滤后369份样本
非冗余的样本总共378份
6个时期都存在的数据总共340份,
5个时期以上都存在的数据总共371份
4个时期以上都存在的数据总共376份
3个时期以上都存在的数据总共377份
2个时期以上都存在的数据总共378份
最后只使用了4个时期都存在的样本数据共376份,没有使用到的样品有Sample249(S249),Sample232(S232),Sample342(S342)
使用Hisad比对到参考基因组
hisat2 -x /data/cotton/MaojunWang/WMJ_fiberFullPopulationRNAseq/MappingFPKM/Ghir_Genome_Index/Ghirsutum_genome --trim5 2 --trim3 5 --max-intronlen 100000 -1 /data/cotton/MaojunWang/Fiber_RNASeq_Ghir_Population/0DPA/${ID}_0DPA_R1.fq.gz -2 /data/cotton/MaojunWang/Fiber_RN
ASeq_Ghir_Population/0DPA/${ID}_0DPA_R2.fq.gz --fr -S ./Bamfiles/${ID}_mapGhir.sam -p 10 >./errlogs/log.${ID} 2>./errlogs/err.${ID}
01进行有参考转录本的组装和基因表达水平的鉴定
Gh_gff3='/data/cotton/zhenpingliu/genome/genome_data/Ghirsutum_genome_HAU_v1.1/Ghirsutum_gene_model.gff3'
Stage=(0DPA 12DPA 16DPA 20DPA 4DPA 8DPA)
inputDir='/data/cotton/MaojunWang/WMJ_fiberFullPopulationRNAseq/MappingFPKM/'
outDir='/data/cotton/zhenpingliu/LZP_fiberFullPopulationRNAseq/02sQTL'
for k in ${Stage[@]}; do
for sample in $(cat ${outDir}/${k}/samples_id.txt); do
sampleId=$(echo ${sample} | sed 's/_.*//g')
mkdir -p ${outDir}/${k}/${sampleId}
stringtie ${inputDir}/${k}/Bamfiles/${sample} --fr -G ${Gh_gff3} -A ${outDir}/${k}/${sampleId}/${sampleId}_gene_FPKM.txt -p 5 -B -o ${outDir}/${k}/${sampleId}/${sampleId}_assembled.gtf
done
done
stringtie参数
版本: v2.1.4
-G
参考基因组注释信息-A
基因表达量文件-B
输出Ballgown table 文件-o
组装后的GTF文件输出目录-p
进程数--fr
进行链特异性建库
02进行转录本的merge
使用bash for循环获取所有时期的组装转录本,输入到一个文件中
##组装转录本
stringtie --merge -G ${Gh_gff3} ./mergeGTF_List -o merge.gtf
03将组装后的转录本与参考转录本进行比较gffcompare
gffcompare
软件地址 http://ccb.jhu.edu/software/stringtie/dl/gffcompare-0.12.1.Linux_x86_64.tar.gz
官方文档 http://ccb.jhu.edu/software/stringtie/gffcompare.shtml#gffcompare_dl
##使用gffcompare进行比较
gffcompare -R -r /data/cotton/zhenpingliu/genome/genome_data/Ghirsutum_genome_HAU_v1.1/Ghirsutum_gene_model.gff3 -i query_gff.txt
##查看软件的输出情况

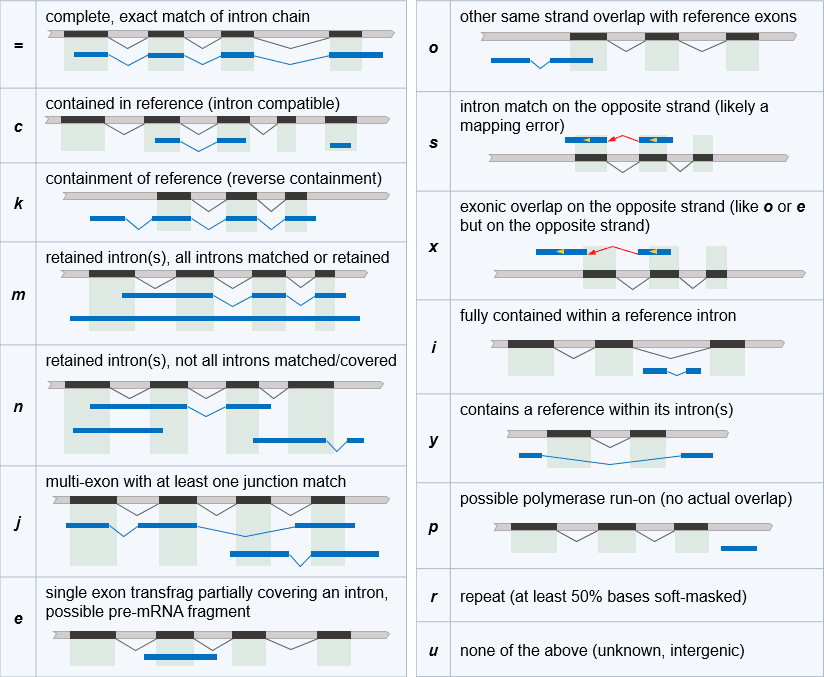

awk -F "\t" '$3~/tran/{print $9}' gffcmp.annotated.gtf |awk -F ";" '{print $(NF-2)"\t"$(NF-1)}'|sed 's/tss_id.*//g'|sort|uniq -c
=
剪切位点完全相同j
多个外显子的转ll录本,其中至少一个外显子的剪切位点与参考基因组一致u
基因间区的转录本(可能是转座子)

04过滤新的转录本
novel junction在一个样本内至少需要有10条read spanning read
转录本在至少一个样本内要达到基因总表达量的10%,表达量使用
TPM
进行量化
过滤在所有样本中都没有剪接位点支持read数目小于10个read的剪接位点
##使用merge后的注释文件进行基因表达量和转录本表达水平的计算
##合并所有样本的junction出read比对情况
##合并所有转录本的表达情况
##提取novel transcript
##提取novel junction
在stringtie生成的i_data_ctab
文件
i_data.ctab
: intron- (i.e., junction-) level expression measurements. One row per intron. Columns are i_id
(numeric intron id), chr
, strand
, start
, end
(genomic location of the intron), and the following expression measurements for each sample:
rcount
: number of reads supporting the intronucount
: number of uniquely mapped reads supporting the intronmrcount
: multi-map-corrected number of reads supporting the intron
